Bitcoin P2P network design — node discovery, message relay, and block propagation

Introduction

This page is L1 #1 — P2P network design in the design-document series. It covers the network layer end-to-end: how nodes discover each other, how they exchange messages, and how transactions and blocks propagate across the peer-to-peer gossip network.

The network layer sits beneath the consensus, transaction, and block layers. It provides the transport over which everything else operates — without reliable peer-to-peer communication, the deterministic validation rules described in the consensus design, transaction design, and block and chain design pages would have no data to act on.

Where behavior differs between the Satoshi-era implementation (v0.1, January 2009) and modern Bitcoin Core (v27+ baseline), both are noted.

1. Network topology

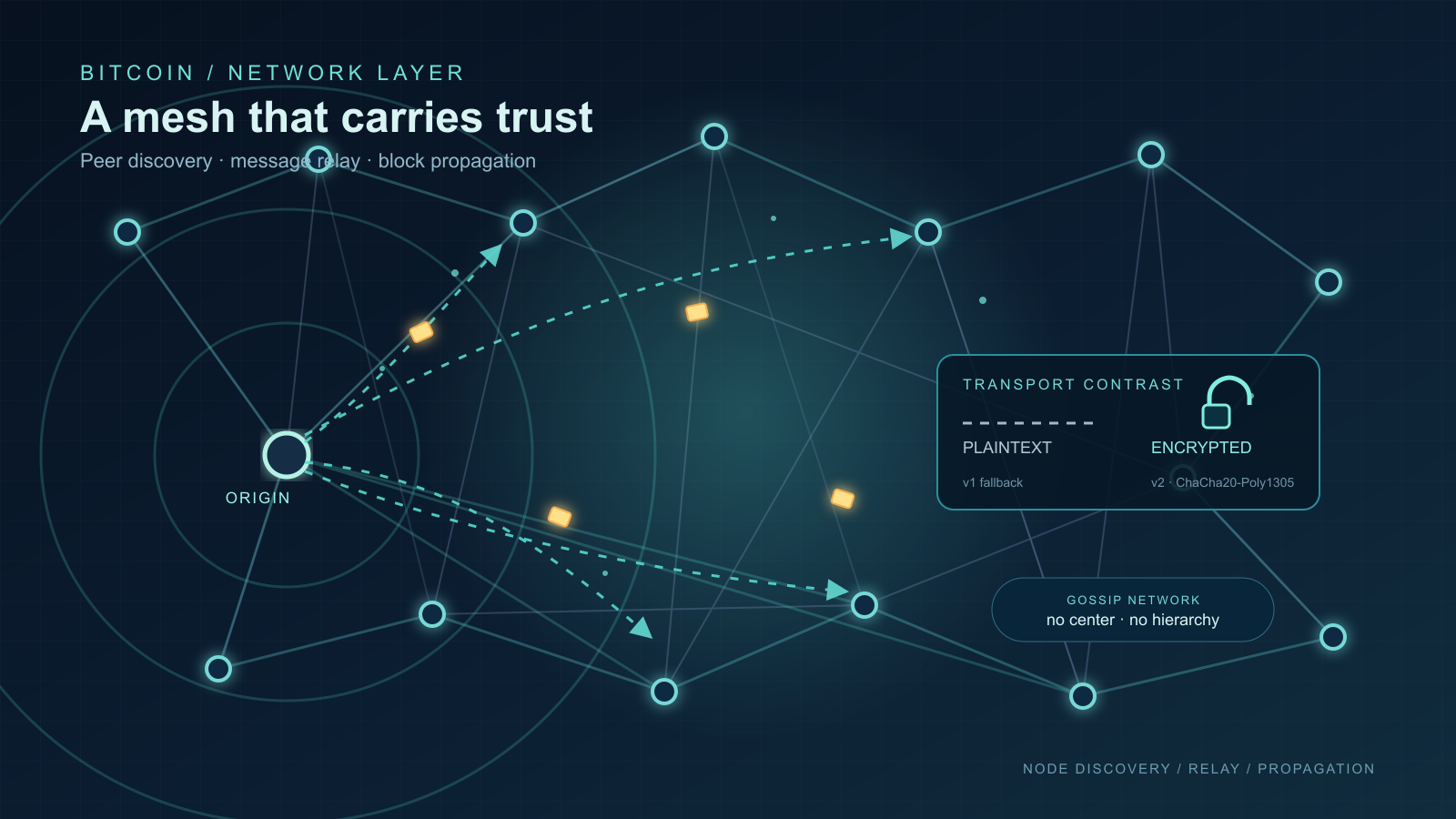

Bitcoin uses an unstructured gossip network. Nodes form a random mesh of TCP connections and relay data to their peers, who relay it to theirs. There is no central server, no routing table, no distributed hash table (DHT), and no hierarchy among nodes. Every full node is equally authoritative.

Why gossip and not structured routing. A DHT or hierarchical topology would reduce message redundancy but would also introduce single points of failure and make the network easier to partition. Bitcoin’s flat gossip model ensures that an attacker must compromise a large fraction of a node’s peers to control what it sees — the foundation of Eclipse attack resistance.

2. Node discovery

A new node joining the network faces a bootstrap problem: it needs to find at least one existing peer, but it has no prior knowledge of the network’s membership.

Discovery mechanisms

Bootstrap sequence (v27+ baseline)

Satoshi era vs v27+ baseline. The original v0.1 client relied on IRC as the primary discovery mechanism — a simple but centralized approach vulnerable to IRC server downtime and channel bans. Modern Bitcoin Core replaces IRC with DNS seeds operated by independent community members. The DNS seed operators run crawler software that continually probes the network, and their DNS records reflect only nodes that are currently reachable and running compatible protocol versions.

3. Connection management

Each node maintains two classes of TCP connections: outbound connections the node initiates, and inbound connections other nodes initiate to it.

Outbound vs inbound: an asymmetry by design. A node trusts its own outbound connections more than inbound connections because it chose the outbound peers itself. An attacker who wants to isolate a node (Eclipse attack) must either control all outbound peers — which requires predicting or manipulating the node’s address selection — or flood the node with attacker-controlled inbound connections. The low outbound count (10 total) and the independent address-selection algorithm make the former difficult; inbound eviction logic makes the latter expensive to sustain.

Eviction

When a node’s inbound slots are full and a new inbound connection arrives, the node runs an eviction algorithm to decide whether to drop an existing peer. The algorithm protects peers with desirable properties:

• Low latency (recently sent useful data)
• Long connection duration
• Diverse network groups (different /16 subnets, different autonomous systems)
• Recently relayed a valid block or transaction

This diversity-preserving eviction makes it costly for an attacker to monopolize a node’s inbound slots, because the attacker’s connections are unlikely to outcompete honest peers on all protected dimensions simultaneously.

4. Message protocol

All communication between peers uses a binary message protocol. Every message carries a 24-byte header (4-byte network magic + 12-byte command name + 4-byte payload length + 4-byte checksum) followed by the payload.

Version handshake and block relay

Key message types

Satoshi era vs v27+ baseline. The v0.1 protocol defined approximately 7 message types and relayed full blocks to every peer. Modern Bitcoin Core (v27+ baseline) supports 27+ message types and uses compact blocks (BIP 152) as the default relay method, reducing block relay bandwidth by roughly 90% for well-connected nodes with overlapping mempools.

5. Transaction relay

When a node accepts a transaction into its mempool, it announces the transaction to its peers via the gossip network.

The relay process follows an announce-then-request pattern:

1. Announce. The node sends an inv message containing the transaction’s hash to each peer.
2. Request. A peer that has not seen this hash responds with getdata.
3. Deliver. The announcing node sends the full tx message.
4. Validate and propagate. The receiving peer validates the transaction independently. If valid, it accepts the transaction into its own mempool and repeats the announce cycle to its peers.

Privacy-preserving relay. To prevent network observers from tracing a transaction back to the originating node, Bitcoin Core adds a random delay before announcing each transaction to each peer (Poisson-distributed timer). Each peer receives the announcement at a slightly different time and from a potentially different set of earlier relayers, making origin inference difficult.

Fee filter. The feefilter message (BIP 133) allows a node to tell its peers its minimum acceptable fee rate. Peers then skip announcing transactions below that threshold, reducing bandwidth waste for transactions the receiving node would reject anyway.

Orphan transactions. A transaction that references an input whose parent transaction is unknown is called an orphan. The node holds orphans in a limited cache. If the parent transaction arrives later, the orphan is re-evaluated. If the cache fills, the oldest orphan is evicted. This mechanism handles transactions that arrive out of order but prevents memory exhaustion from invalid orphan floods.

6. Block propagation

Block propagation is the most latency-sensitive operation in the network. Slow propagation increases the stale-block rate and gives better-connected miners an advantage, undermining the fairness of the mining competition.

Propagation modes

How compact blocks achieve ~90% savings. When two peers have similar mempools (the common case for well-connected nodes), the receiver already has most of the block’s transactions. The cmpctblock message sends only the block header and a 6-byte short ID for each transaction. The receiver matches these IDs against its mempool, reconstructs the block locally, and requests only the handful of transactions it is missing. For a 2,000-transaction block, the cmpctblock message is roughly 20 kB instead of 1–2 MB.

High-bandwidth vs low-bandwidth mode (BIP 152). Compact blocks operate in two modes. In high-bandwidth mode, the sending peer pushes the cmpctblock immediately upon validation — without waiting for the receiver to request it via inv/getdata. A node typically designates three peers for high-bandwidth mode to minimize relay latency for new blocks. In low-bandwidth mode, the standard announce-then-request pattern is used with inv first, trading latency for bandwidth savings with the remaining peers.

7. Transport layer: plaintext vs encrypted

In the Satoshi-era design, all peer-to-peer communication was transmitted in plaintext. Any network observer — an ISP, a state-level adversary, or a man-in-the-middle on a local network — could read every message, identify which transactions a node was relaying, map the network topology, and selectively drop or delay messages.

BIP 324 v2 transport (supported since v26.0, enabled by default in v27+) introduces an opportunistic encrypted transport layer between peers that both support it.

Why encrypted transport matters. Plaintext communication gives network-level adversaries three capabilities Bitcoin’s design does not intend them to have: (1) surveillance — an ISP can log which transactions a node relays, correlating with IP addresses; (2) targeted censorship — a state actor can identify and block Bitcoin traffic by pattern-matching the protocol’s distinctive header; (3) man-in-the-middle manipulation — an intermediary can selectively delay blocks or transactions to advantage specific miners or partition specific nodes. Encrypted transport does not eliminate all of these threats (a persistent adversary can still observe connection patterns), but it raises the cost substantially.

8. Two-era comparison

9. Limits of this page

This page covers the network layer in isolation. The following topics are out of scope and addressed in their respective domain pages within the design-document series:

• Transaction validation and UTXO model — what makes a transaction valid before it enters the mempool. Covered in the transaction design page.
• Block validation and consensus rules — the deterministic checks a node applies to every block received from the network. Covered in the consensus design page.
• Block structure and Merkle trees — how transactions are committed inside a block header. Covered in the block and chain design page.
• Mining and proof-of-work — block template construction, the hash puzzle, and pool protocols.
• Eclipse and Sybil attack economics — the full threat model for network-level attacks. Deferred to the L2 security-model deep dive.
• Mempool policy details — package relay, Replace-by-Fee mechanics, and fee-rate bucket estimation.
